MSP Vertical In-Line, Medium Speed, Overhung API Process Pump
Category: Inline Design
Specifications
Details
Brands:
Flowserve
Applications:
Acid Transfer, Auxiliary (chemical), Condensate Extraction, Catalytic Cracking, Distillation (oil and gas), Gas Treating and Sulfur Recovery, Residuum and Heavy Oil Upgrading, Heavy Oil, Oil Sands and Shale, Hydrocracking, Hydrotreating, LNG, Gas to Liquids
Industries:
Chemical Processing, Power Generation, Oil and Gas
Variable Speed ensures consistent BEP performance. Achieves system fluid demand without throttling for significant energy savings. Changing operating conditions are addressed by simple speed adjustment.
Variable Frequency Drive includes all safety features.
Rigid Coupling ensures precision shaft alignment while eliminating time-consuming manual alignment.
Special Hydraulics provide efficient low specific speed hydraulics for low flows at high heads.
Impeller Sub-Shaft allows wide range of materials for wetted shaft.
Operating Parameters
- Flows to 27 m3/h (120 gpm)
- Heads to 900m (2955 ft)
- Pressures to 60 bar (870 psi)
- Maximum suction pressure to 40 bar (580 psi)
- Temperatures from -40°C (-40°F) to 350°C (660°F)
- Operating speeds from 2000 rpm to 8000 rpm

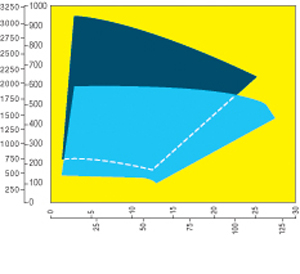

MSP Overhung, Vertical In-Line, Medium Speed Pump Chart

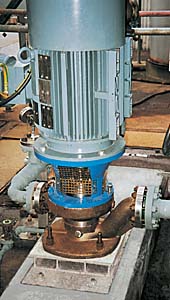

MSP Overhung, Vertical In-Line, Medium Speed Pump App
