PVXM ISO 13709/API 610 (OH3) Vertical In-Line Overhung API Process Pump

PVXM ISO 13709/API 610 (OH3) Vertical In-Line Overhung API Process Pump

Category: Inline Design

Specifications
Details

Brands:
Flowserve

Applications:
Gas Treating and Sulfur Recovery, Paper Stock, Water Supply and Treatment (oil and gas), Distillation (oil and gas), Acid Transfer, Crude, Product and CO2 Pipeline, Water Treatment

Industries:
Chemical Processing, Water Resources, Oil and Gas, General Industries

Standards:
API682, API610

Suction Box Design provides shockless impeller entry and optimized NPSHR.

Dynamically Balanced Impeller limits vibration and ensures smooth operation over wide flow range.  A smooth, investment cast surface provides excellent hydraulic efficiency.

Pump Casing and Cover feature metal-to-metal fit with fully confined, controlled compression gasket to ensure proper sealing and alignment.

Performance Tuning capabilities include field hydraulic customization.

Operating Parameters

  • Flows to 500 m3/h (2200 gpm)
  • Heads to 275 m (900 ft)
  • Pressures to 40 bar (600 psi)
  • Temperatures from -100°C (-148°F) to 250°C (480°F)

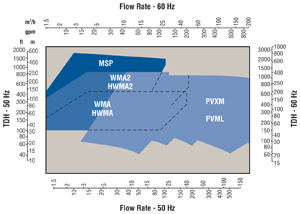

PVXM 13709/API 610 (OH3) Vertical In-Line Overhung API Process Pump Chart
