Details
Design Features
- Oversize shaft to improve life-span
- Pump rear-housing acts as insulator to prevent motor heat being transmitted to fluid
- Pumping heads easily rotated, cleaned & serviced
- Magnetic design acts as clutch to eliminates motor burnout or overloading
- Drive magnet dynamically balanced with long motor bearing life-span
- Chemical resistant material wetted parts
- No seal friction to reduce motor horse-power
- No maintenance due to seal wear
- Leak-proof, seal-less magnetic drive
Model | Max Flow (litres/min) | Max Head (mtrs) | Motor Power (W) | Motor Phase (phs) |

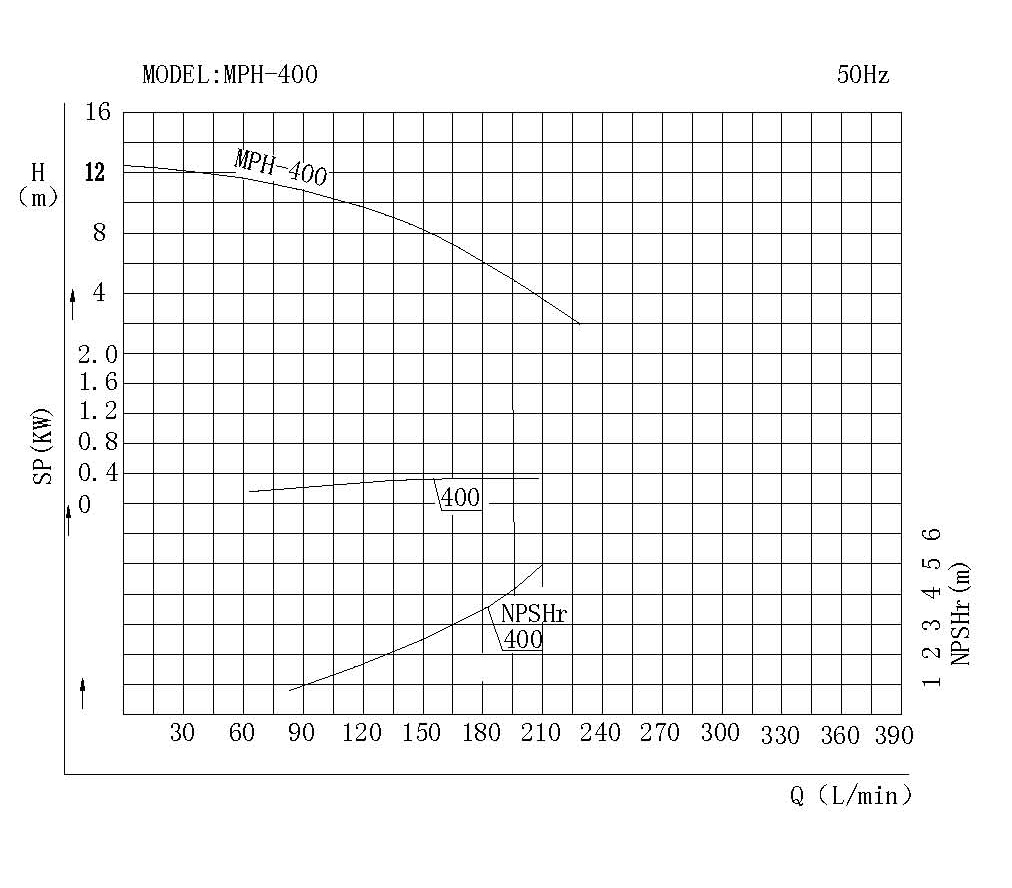

MP-400CV5 | 220 | 12.5 | 400 | 3 |

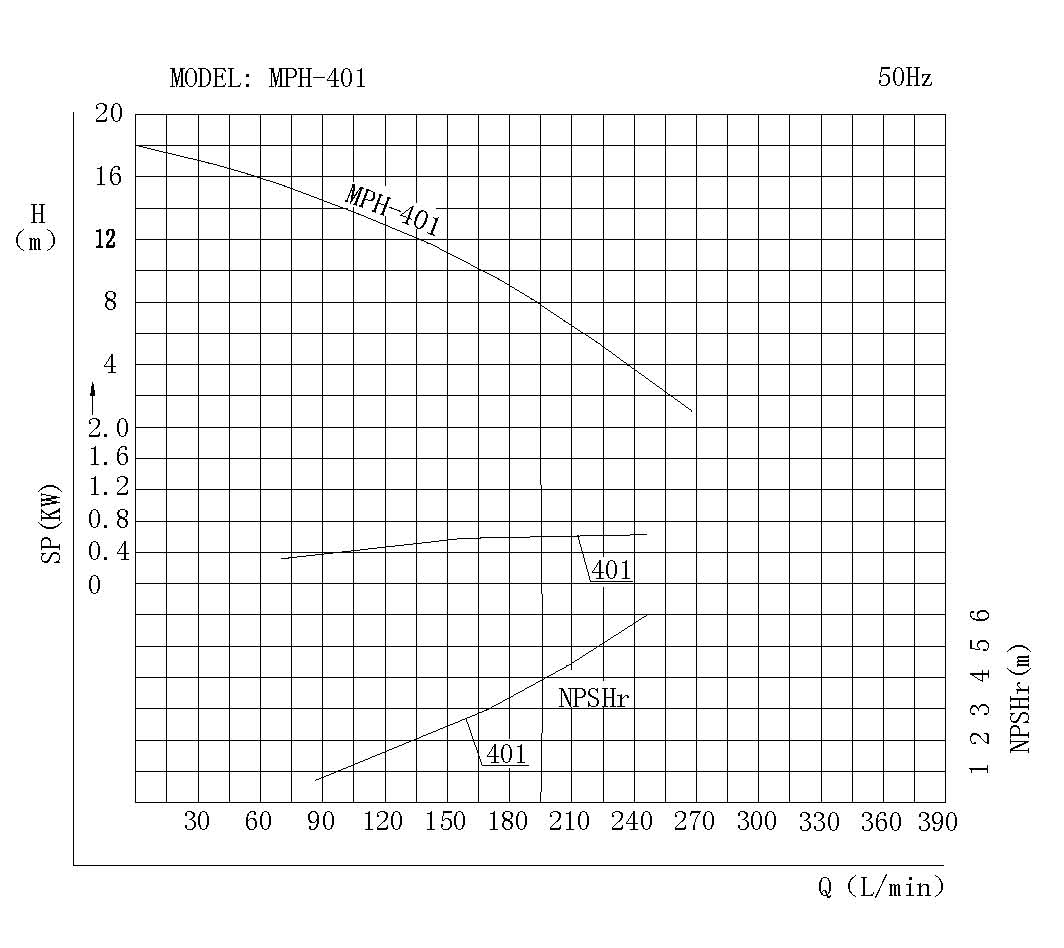

MP-401CV5 | 260 | 18 | 750 | 3 |

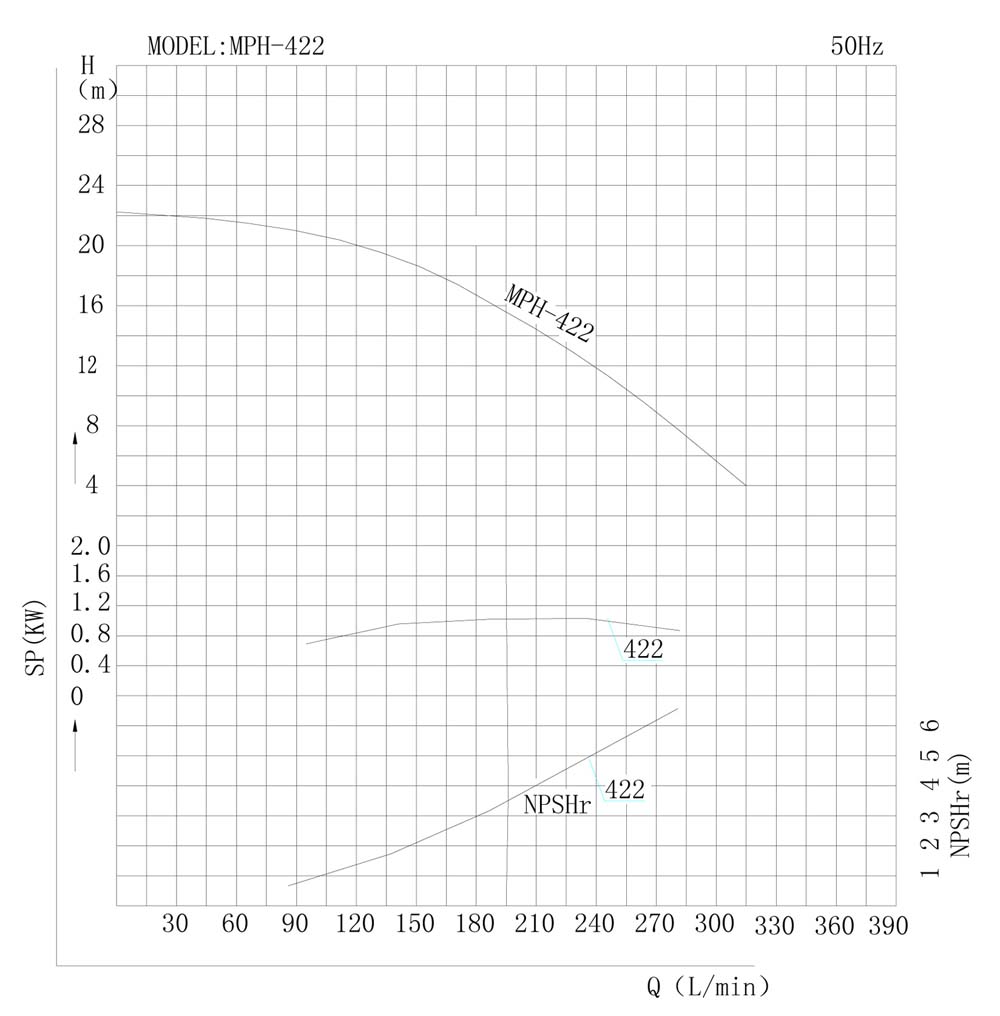

MP-422CV5 | 320 | 21 | 2200 | 1 or 3 |
MP-423CV5 | 380 | 22 | 2200 | 1 or 3 |
