S05 Metallic ½" (15 mm) AODD – Standard Duty Ball Valve Pump

Category: Diaphragm Pumps (AODD Pump)

Specifications

Porting Size

1/2 NPT (Internal) or 1/2" BSP (Tapered) 1/2" Raised Face 150# ANSI Flanges - Stainless Steel ONLY

Capacity

0 - 15 gpm (56 lpm)

Air Distribution Valve

No-lube, no-stall design

Solids Handling

Up to 0.125" (3 mm)

Stroke

0.026 gallons (0.98 liters)

Max Operating Pressure

125 psi (8.6 bar) metallic center & 100 psi (7 bar) non metallic center

Weight

Aluminum - 15 lbs (7 kg) Stainless Steel - 21 lbs (10 kg)

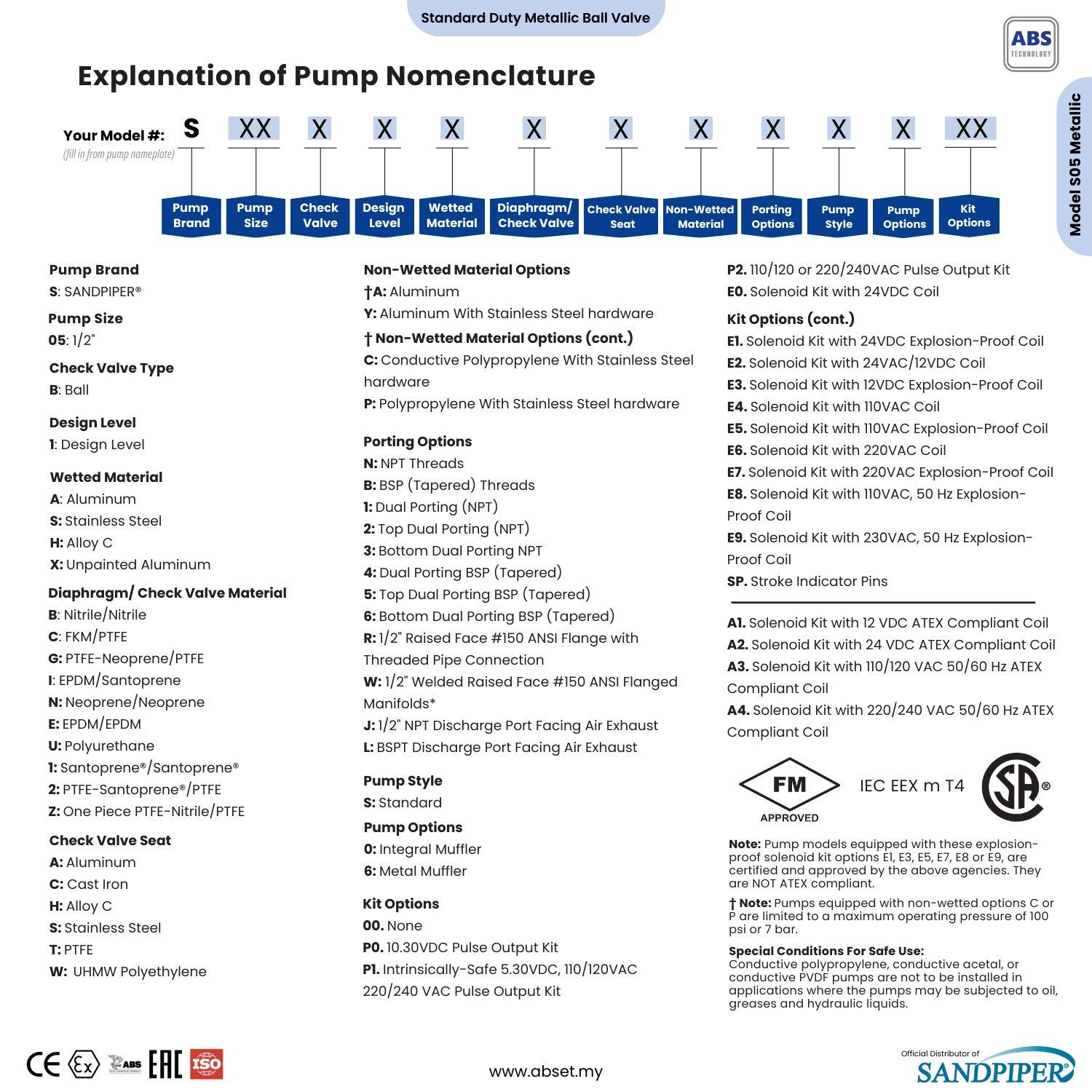

Model Number

S05B1A2TABS000, S05B1A2TABS000.A, S05B1S2TABS000

METALLIC AODD PUMP 0.5 inch aodd pump S series 15 mm standard duty ball valve pump

Details

S05 Metallic ½" (15 mm) AODD – Standard Duty Ball Valve Pump

The SANDPIPER S05 METALLIC ½" (15 MM) is a trusted, compact solution, ideal across a wide variety of markets and applications. With its all-bolted constructions, the S05 provides reliable, leak-free performance, handling abrasive fluids and small suspended solids with ease. Powered by compressed air or nitrogen, this pump is designed to offer portability, versatility, and power in a compact design.

Features		Applications
Durable Construction: The S05’s bolted design is superior to clamped-band alternatives, ensuring leak-free operation and long-lasting performance. Serviceability: SANDPIPER’s ESADS+ allows fast, on-site maintenance without removing the pump from service, reducing downtime to five minutes compared to 55 minutes with competitor models. Trusted design: The original ADS is fully interchangeable, repairable, and inline-serviceable, unlike many competitor designs that change frequently, increasing ownership costs.		Chemical processing: Efficiently handles various chemicals and corrosive fluids. Mining and industrial: Rugged design suits abrasive and high-solid applications. Food and Beverage: Reliable for food-grade applications, handling small suspended solids. Wastewater Treatment: Ideal for processing wastewater and slurry materials. Paints and Coatings: Handles abrasive pigments and viscous fluids effectively.

Why Choose SANDPIPER AIR OPERATED DOUBLE DIAPHRAGM
Compact and Portable: Lightweight, portable design for easy transportation and adaptability in various settings	Versatile Power Options: operates on compressed air or nitrogen	Reduced Downtime: Quick serviceability with ESADS+ minimizes maintenance time and maximizes productivity.
