Details

---

Motor

• Direst starting motor
• IEC Standard

Mounting Bracket

• Strong mounting Bracket for stable performance

Impeller Rear-Support

• Extra impeller rear-support for stable performance; reduce effects of cavitation; improve heat transfer
• Wet and catridge-modular designs, allows low cost replacements impeller, trust bearing, shaft, impeller rear-support shaft bearing.....

Impeller

• Oversized axial thrust washer
• Modular impeller allows for modifying performances

Rear Casing and shaft

• Strong casing tested with 20 bar performance
• Oversized shaft for stable performance, available in silicone Carbide & 99.7% pure alumina ceramic
• Non-metallic reinforced polymer eliminates heat & efficiently losses
• Single (fully confined)  O-ring for better sealing reliability

Casing

• Machined from solid block PP or PVDF with raised face flangers for superior performance & ensure zero leakage
• Heavy walled, machined construction provides for greater resistance to permeation and migration of corrosive
• Strong & thermal stability resists deformation & maximum chemical resistance
• Perfect design to mimise effect of cavitation

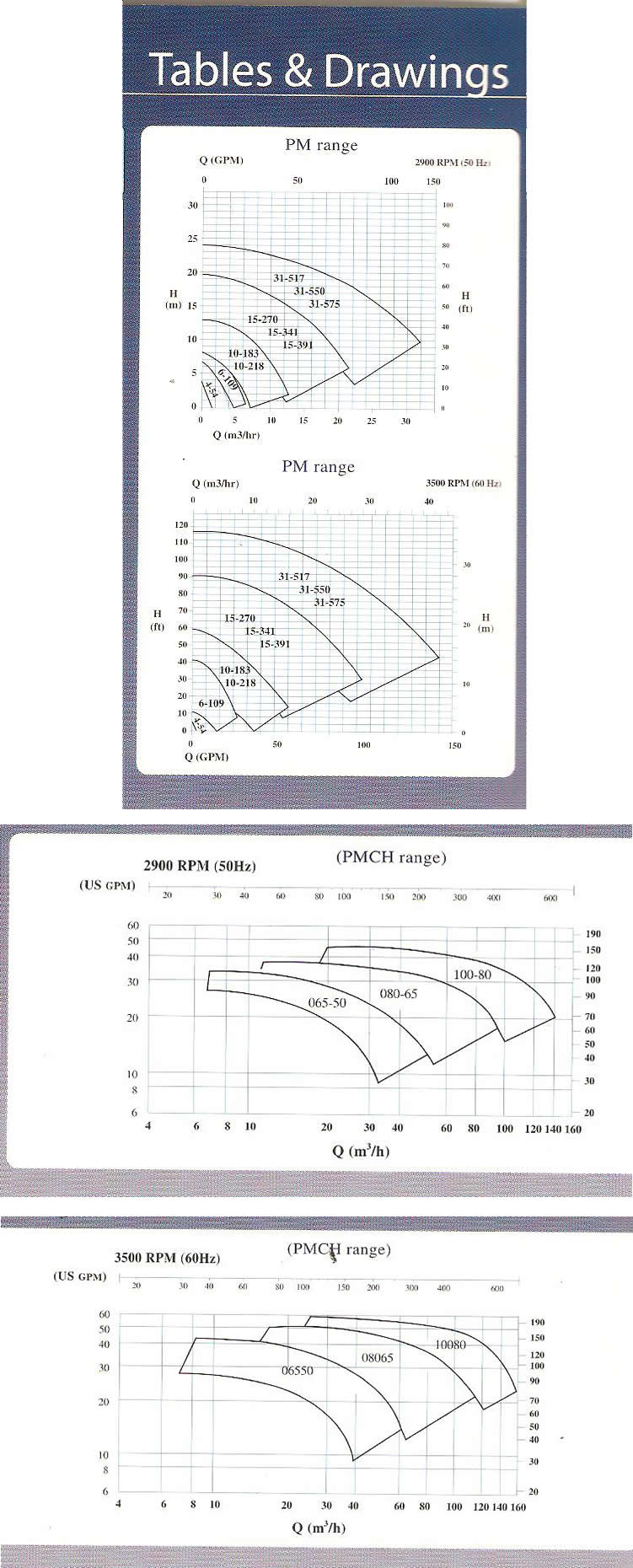

Model	Max Flow (litres/min)	Max Head (mtrs)	Motor Power (W)
PM4	54	7.5	0.12
PM6-109	109	6.75	0.25
PM10-183	183	10	0.55
PM10-218	218	13.75	0.75
PM15-270	270	10.25	1.1
PM15-341	341	15	1.1
PM15-391	391	20	1.5
PM31-517	517	14.5	1.5
PM31-550	550	20	2.2
PM31-575	575	24	3.7
PMCH 065-50	600-783	21-34	2.2-3.7
PMCH 080-65	966-1500	18-36.5	3.7-7.5
PMCH 100-80	183-2200	28-48	7.5-15
