S15 Metallic 1½" (40 mm) AODD – Standard Duty Ball Valve Pump

Category: Diaphragm Pumps (AODD Pump)

Specifications

Porting Size

1.5" NPT (Internal) 1.5" BSP (Tapered) 1.5" ANSI 150# Raised Face Flanges

Capacity

0- 106 gpm (401 lpm)

Air Distribution Valve

No-lube, no-stall design

Solids Handling

Up to 0.25" (6 mm)

Heads up to

125 psi or 289 ft of water (8.6 or 88 meters)

Stroke

0.41 gallons (1.55 liters)

Max Operating Pressure

125 psi(8.6 bar)

Weight

Aluminum - 53 lbs (24 kg) Cast Iron - 93 lbs (42 kg) Stainless Steel - 95 lbs (43 kg)

Model Number

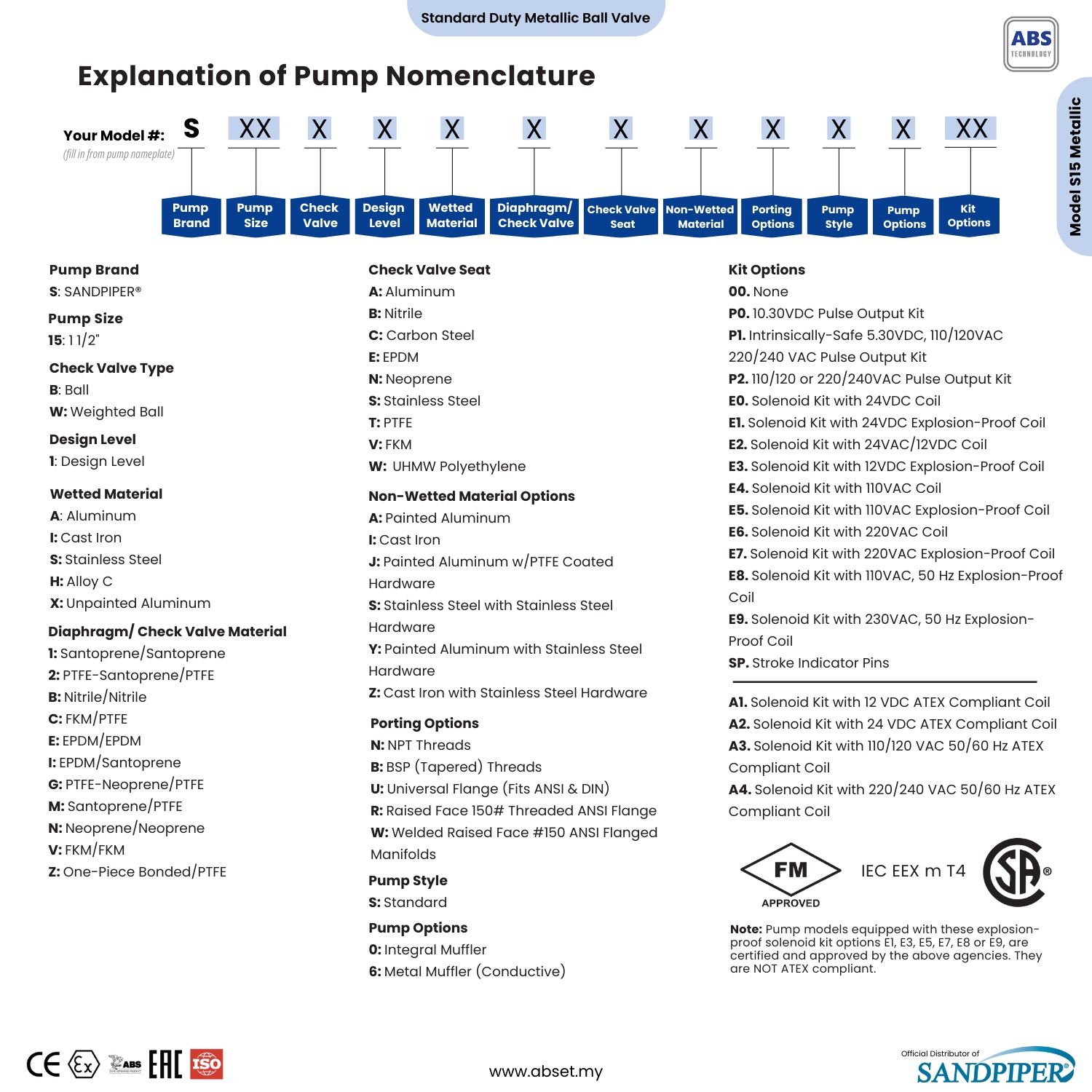

S15B1A2TABS000, S15B1S2TABS000

METALLIC AODD PUMP S series 40 mm 1.5 inch aodd pump standard duty ball valve pump

Details

S15 Metallic 1½" (40 mm) AODD – Standard Duty Ball Valve Pump

The SANDPIPER S15 METALLIC 1½" (40 MM) is engineered for superior suction lift of over 22 ft (6.7 m), making it highly effective for challenging OEM applications. This versatile and mobile pump is capable of handling abrasive fluids and suspended solids, making it a reliable choice for harsh chemical applications. Additionally, it offers air-side interchangeability with SANDPIPER’s S20 and S30 pumps, simplifying inventory management and reducing inventory costs.

Features		Applications
Durable and Bolted Construction: Superior to clamped-band models, ensuring excellent leak-free performance and enhanced durability. Serviceability: Features SANDPIPER’s ESADS+, enabling full ADS access without pump removal, drastically reducing downtime to five minutes compared to 55 minutes with competitor pumps. Interchangeability: Compatible with SANDPIPER’s S20 and S30 pumps on the air-side, making inventory management more efficient and cost-effective. Material options: Available in aluminum, cast iron, and stainless steel, with TPE and PTFE diaphragm and check valve options for chemical compatibility and durability.		Chemical processing: Handles abrasive and aggressive chemicals with ease. Mining and Construction: Reliable in harsh conditions, transferring solids with minimal wear. Wastewater Management: Efficient for moving wastewater and handling solid content. Industrial Settings: Suited for challenging environments involving abrasive and solid-laden fluids. OEM Applications: Compact and mobile, perfect for integration in OEM systems.

Why Choose SANDPIPER AIR OPERATED DOUBLE DIAPHRAGM
Superior Suction Lift: With a suction lift exceeding 22 ft §6.7m), this pump ensures optimal performance in applications requiring high lift capacity	Simplified Maintenance: Quick and efficient servicing through the ESADS+ feature minimizes downtime and maintenance costs	Enhanced Compatibility: Air-side interchangeability allows for reduced inventory and operational flexibility.
