PolyChem M-Series Fluoropolymer Lined, Magnetic Drive, Overhung ISO Chemical Process Pump

PolyChem M-Series Fluoropolymer Lined, Magnetic Drive, Overhung ISO Chemical Process Pump


Specifications
Details

Brands:
Durco

Applications:
Water Treatment, Pharmaceuticals, Plating, Galvanizing and Other Coatings, Polymers, Renewable Fuel Production, Shipping, Solvents, Volatile Organic Compounds, Agriculture, Waste Processing, Automotive, Auxiliary (chemical), Caustic and Chlor-alkali, Construction, Desalination, Electronics, Food Processing, OEM, Acid Transfer

Industries:
Chemical Processing, Water Resources, Primary Metals, General Industries

Standards:
ASME (ANSI), ISO

PFA Lined Wet End is globally preferred for its superior corrosion resistance and temperature allowance.

Rugged Metal Armor meets material specifications of GGG40.3.

Separate Inner Magnet and Impeller Components significantly reduce impeller replacement cost compared to integral inner magnet/impeller designs.

Rotating Shaft Design eliminates need for shaft support obstructions in the casing inlet.

Rugged Silicon Carbide Bearings offer superior wear resistance and chemical inertness.

Operating Parameters

  • Flows to 135 m3/h (600 gpm)
  • Heads to 145 m (480 ft)
  • Pressures to 17 bar (250 psi)
  • Temperatures from -30°C (-20°F) to 150°C (300°F)

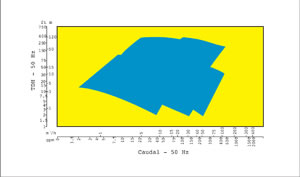

PolyChem M-Series ISO Overhung, Non-Metallic, Magnetic Drive Pump Chart

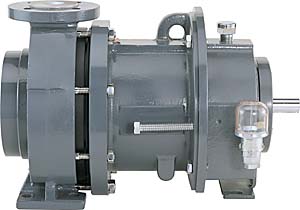

PolyChem M-Series ISO Overhung, Non-Metallic, Magnetic Drive Pump App
